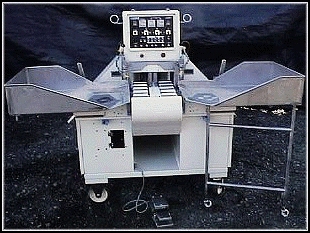

Automatic Scallop Ear-hanging Machine
S-106


Description:
The machine can process two rope lines simultaneously at rates up to 2500 scallops per hour. Operation of the machine is very simple and fast. Using conveyors, the machine moves scallops through separate stations which position scallops in pairs alongside braided rope. The length of rope and spacing of scallops are adjustable, and the drill can be adjusted according to scallop size. The machine can be operated manually or automatically to allow flexibility in speed, and individual operation keys are available for independent control of the separate stations. Most of the machine parts are aluminum or stainless steel, and the microprocessors are well protected from water damage. The machine is equipped with castors, so can be moved easily.

Dimensions:
1.2m wide x 1.7m long x 1.3 m high, (47 " x 66 15/16" x 51 3/16").

Weight:
279kg, (615lbs).

Use:
Drill holes in the scallop ears and the rope, and insert plastic pins through the holes to attach the scallops to the rope.

Features / benefits:
Process two rope lines simultaneously, tie pins supplied by push of button, setting scallops is simple & safe, adjust distance between scallops easily, can use spliced rope, same rope can be used for many seasons, scallop shell sizes 50mm to 110mm, processes between 2000 and 3800 animals per hour depending on process speed and skill of operator, Optional MCB-150 hopper feed conveyor.

Manufactured in Japan.



To receive a quote on this product,
please fill out our quote request form.
